KIS-MVM/MEDICINE VACUUM MIXER WITH TANK (MATERIAL MIXING TANK) > Softgel Encapsulation Line - Mass Production

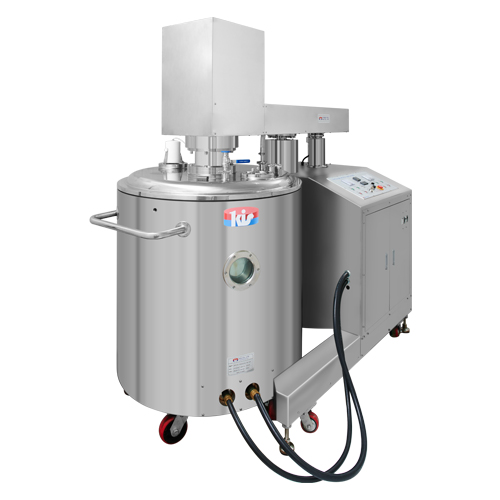

KIS-MVM/MEDICINE VACUUM MIXER 600L

WITH 600L TANK (MATERIAL MIXING TANK)

Consist of Control systems

- PLC MAIN, XBM-DN32S 1PC, LS KOREA

- Electrical equipment terminal block, XTB-40H, 1PC, LS KOREA

2 Fold Hydraulic cylinder up/down type

Material: Contact parts STS316L, Others STS304

Frame size: 900 x H900mm

Tank dimensions: 1500 (L) x 1200 (W) x 2200mm(H)

Heater: 10Kw x 2ea

Hydraulic pump: 1.5Kw

Vacuum pump: 5Hp/4Kw

Subdivide using sanitary pumps

Agitator motor power: 7.5HP/6Kw
