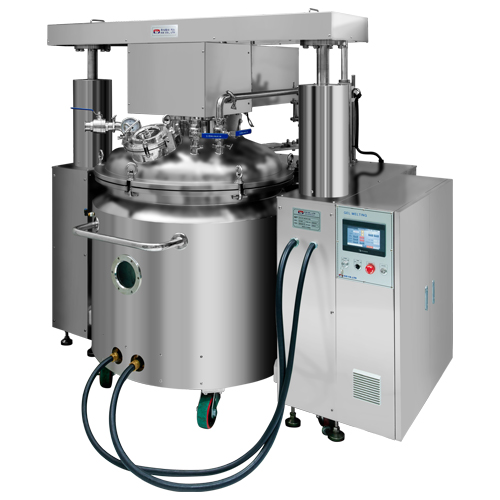

GELATIN MELTING MIXER WITH TANK
Products > Softgel Encapsulation Line - Mass Production
Specifications
KIS-GMT/GEL MELTING MIXER 600L WITH TANK:
Applicable for both of Animal Gelatin & Vegetable Gel melting:
KIS-GMT/GEL MELTING MIXER LIFTING SYSTEM:
Equipped PLC & Touch screen control system
Consist of Control systems
- PLC MAIN, XBM-DN32S 1PC, LS KOREA
- Electrical equipment terminal block, XTB-40H, 1PC, LS KOREA
-7.4" TOUCH PANEL, MT807IP, EasyView
1.Hydraulic Lifting Type
2.Material: Contact part STS316L, Others STS304
3. Frame size: 950 x H900mm
3. Hydraulic pump: 2.2Kw
4. Vacuum pump: 5HP / 4Kw
5. Weight : 1,800Kg
GEL MELTING TANK 600L x 1tank.
Material: STS 316L or STS304 at customer selection
Heater: 15Kw x 2ea
Tank dimensions: 2,200mm(L) x 1,500mm(W) x 2,000(+1,100)mm(H)
Agitating motor power: 15HP 30:1/11Kw,
Heater: 15Kw x 2ea
