TUMBLING DRYERS SYSTEM > Softgel Encapsulation Line - Mass Production

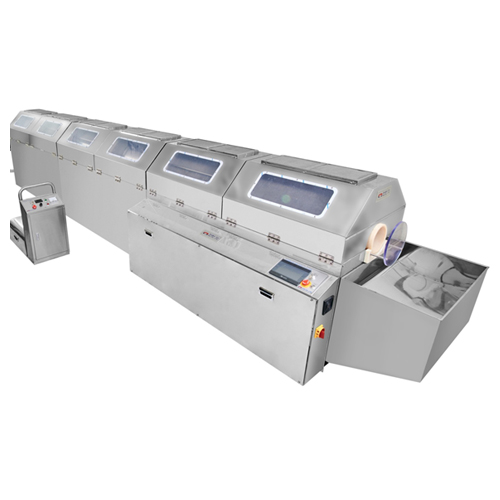

Tumbling Dryer with 6 baskets
(CE Certificate)

Equipped PLC & Touch screen control system

Consist of Control systems

- PLC MAIN, XBM-DN32S 1PC, LS KOREA

- PLC ANALOG, XBF-AD08A 3PCS, LS KOREA

- PLC OUTPUT, XBE-TN16A, 1PC, LS KOREA

-7.4" TOUCH PANEL, MT807IP, EasyView

Production rate: each basket control using the inverter.

Basket size/1pc: ø614mm x 921mmL

Dimenion: 800mmW x 6000mmL x 1287mmH

Weight: Approx. 3,900Kg

Total power consumption: Approx. 13.5Kw

Main motor: 0.75Kw x 6 motors  4.5Kw

Fan motor: 1.5Kw x 6 motors  9Kw

Voltage: 380V, 3 phases

Frequency:50 or 60Hz
